Construction Workflow Intelligence for AEC Teams

Setmark is reading sheet E2.050

Public drawing
TxDOT Bandera maintenance facility

Public drawing / TxDOT Bandera maintenance facility / sheet E2.05

Takeoff from the drawings

Every count we give you is tied to the sheet it came from.

Move across the sheet and each bollard lights up where it is drawn.

All 24 bollards on this sheet, each one boxed where it is drawn.

Request a run

0/ 24

Bollards on this sheet

Scroll

Every count opens to the clippings it came from, so you can check each one against the drawing.

E2.05 bollard, bottom row

E2.05 bollard, right side

E2.05 bollard, left side

Across the set, every count stays tied to the sheet it came from, and anything we could not read is marked for you to check.

01 / Check these first

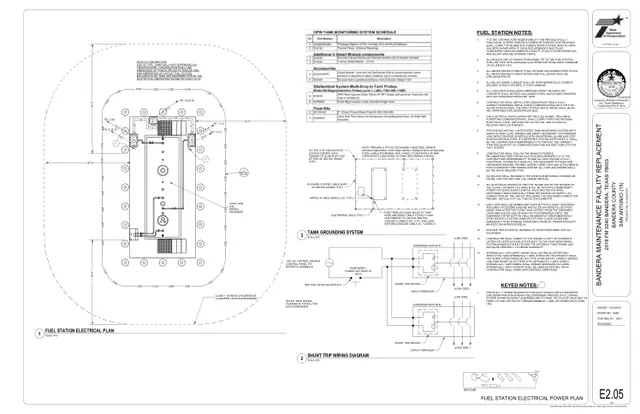

An example, read from public sheet E2.05 to show what you get.

Start with the few items that still need a person.

Instead of re-counting the sheet, you start with what the drawing leaves open, each item tied to the note or detail that raised it.

Two 1 inch spare raceways at each dispenser, run underground to panel FE

E2.05 keyed note 1 Tagged at both dispensers, two each. Run length waits on the route to panel FE.

4 racewaysProposed

Explosion-proof seal at both ends of every conduit that rises above grade to the fuel island

E2.05 fuel station note 6 Seal count follows the conduit count.

2 per conduitProposed

A 3/4 inch by 10 foot ground rod outside each corner of the slab

E2.05 detail 3 note One per corner as drawn. The detail is not to scale, so the cable between rods waits on the final slab.

4 rodsProposed

02 / Not counted, and why

What we did not count, named with the reason.

Anything left out of the count is listed by name with the sheet that explains it, so you can carry it as an allowance or an exclusion instead of finding it after award.

Held

Final bollard and slab layout

Tank size depends on the tank supplied, so the contractor sets the final layout within the limits on A2.05. The 24 bollards are counted as drawn.

Points to A2.05

Not a quantity

Two hours of training for TxDOT staff

Listed for your scope letter, not the takeoff.

E2.05 fuel station note 13

03 / Where it stops

These are the places the tool stops and your judgment takes over.

It does not price your job

It counts from the drawing. The numbers in your bid are yours.

It does not decide for you

Anything it is not sure of comes to you, marked as proposed.

It does not hide a gap

What it could not count is listed by name, with the sheet that explains it.

Test it on a set
you already know.

Pick a controls job you have already taken off. We run it and show you, side by side, what Setmark found, what it missed, and what still needed you.

Request a run

If you estimate another trade, send it anyway and we will tell you what Setmark can count in it today.

04 / Your part of the set

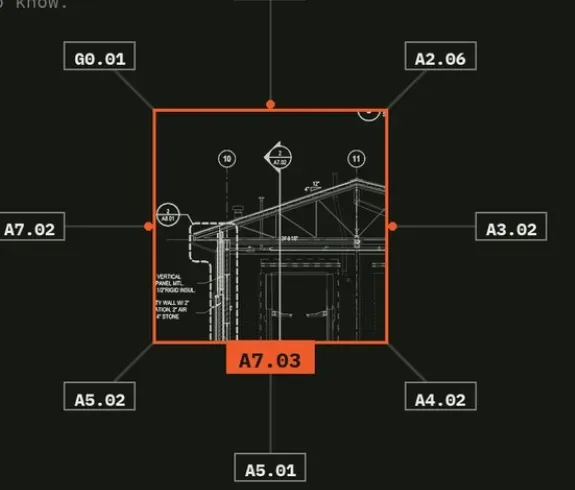

Whichever drawings you answer for, the answer is in the set, just never on one sheet.

The same set that carries your count also carries the places it can disagree with itself, and each page below shows one of them from the side of the people who drew it, priced it, or have to build it.
